San Antonio Belting & Pulley
If it’s belts, see us.
San Antonio Belting & Pulley – serving San Antonio since 1928.
Our products at San Antonio Conveyor Belting & Pulley – Industrial & Hydraulic Hose Shop are built in the USA and is known for its supreme quality all over the country. We are not only the best manufacturers but also the best suppliers in the entire market. We stock a huge range of gates belts & gates hoses distributor or bearings in San Antonio ready for immediate shipment across the USA. We are able to assemble gates, belts, and hoses to customer requirements, pressure test each assembly, and supply test certificates as per our customer’s requirements. We can also handle any of your hose repair needs.
Located in the bustling industrial side of downtown San Antonio, our central location helps to better serve our customer’s belting and pulley needs.
Hoses
We stock and variety of different hoses which include industrial hose, hydraulic hose, ducting hose, metal hose, fire hose, hose reels, and all the fittings, clamps and adapters to go with them. Whether you’re looking for food-grade or oil field vacuum hose we have the inventory to create the specific hose assembly you need. Custom hose assemblies are our specialty and we can create a new one or do a hose repair for you while you wait.
Industrial Hoses
Industrial hose is also known as an industrial rubber hose. It’s one hose that’s used as a connector in all kinds of equipment for industries. Compared with hard hoses, industrial hoses have excellent flexible, and bending features. Industrial hose is used in the more complex, even worse operating environment than a civilian hose. The equipment also has more demanding requirements for the hose, so the industrial hoses have strict specifications and standards from the design, material choice, production, and transportation to the ultimate storage. Industrial hoses are available in a wider range of size options, a vast range of pressure and temperature, and higher chemical resistance.

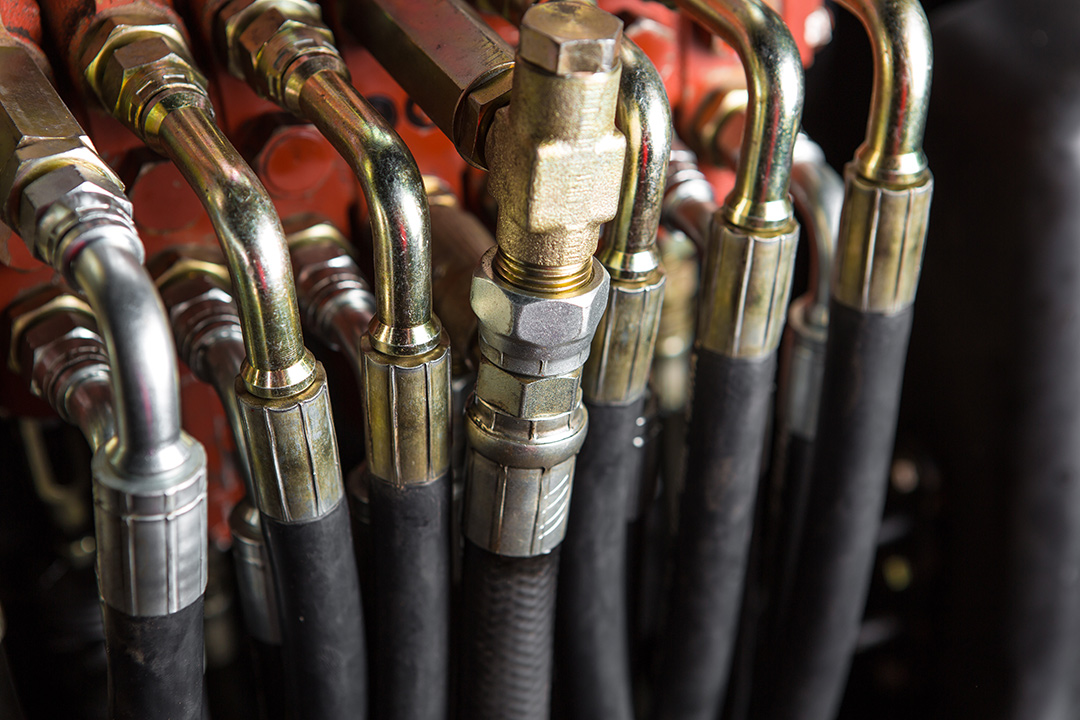

hydraulic hose
A hydraulic hose is a high-pressure, synthetic rubber, thermoplastic or Teflon reinforced hose that carries fluid to transmit force within hydraulic machinery. Hydraulic machinery began to be used in the early 1940s when engineers discovered that hydraulic systems were more compact, lighter in weight, and self-lubricating. World War II spurred the development of hydraulic machinery for military applications. The development of flexible hydraulic hoses further opened the way for the development of a wide array of new, high-powered machines based on hydraulic technology.

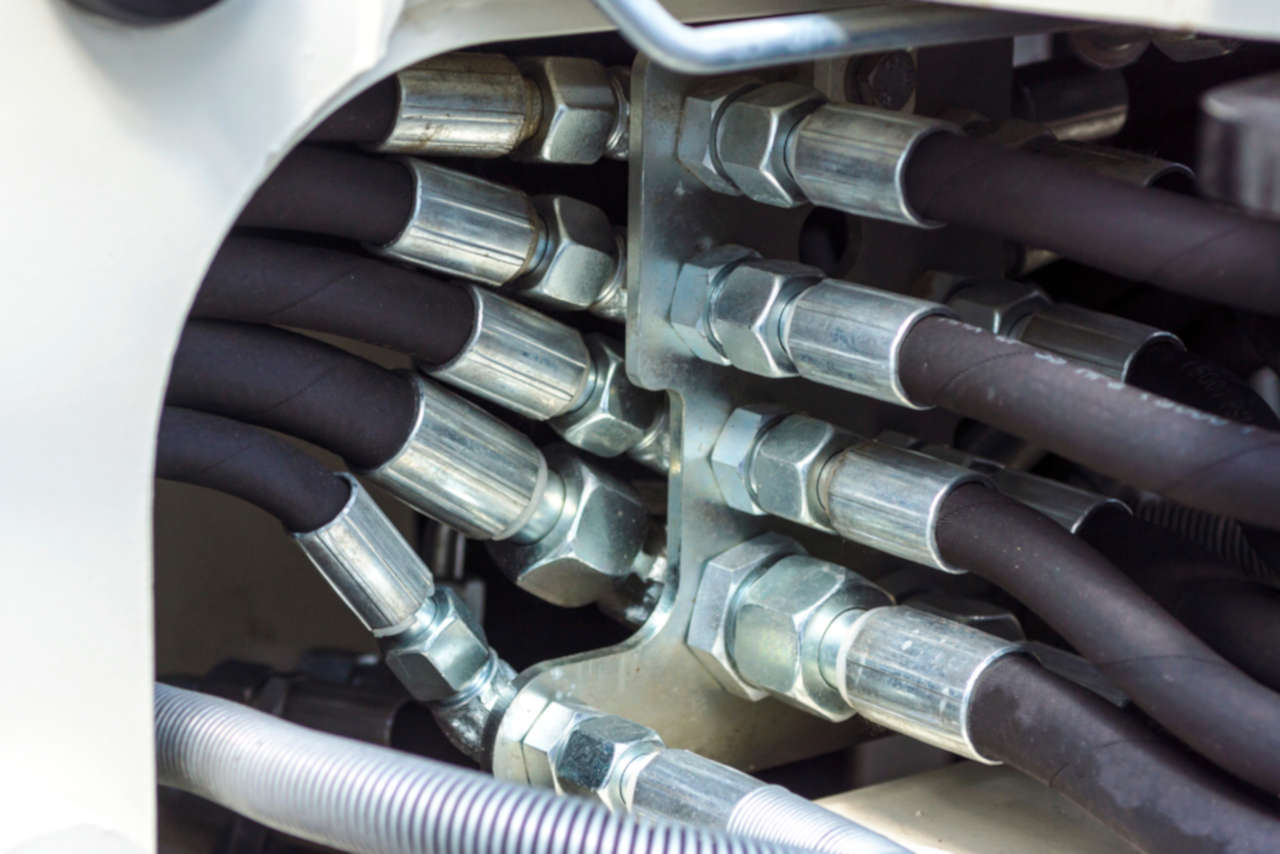

Hydraulic Fittings
Hydraulic fittings and adapters are often assumed to be the same. Hydraulic fittings install into other major components to allow the plumbing of hoses and tubes that wouldn’t otherwise be possible. You install fittings into the work ports of pumps, motors, cylinders, and valves to facilitate the connection of tubes and hoses to these major components.
Fittings for hydraulic applications are often made from forged and machined steel, which are extremely strong and rigid. Occasionally, fittings are machined from steel billet, although this is rare. The fitting will include a thread corresponding to the component’s port, but on the other end will include a thread corresponding to the hose end thread form. SABELT is known for being of the best Hydraulic Supply companies.
Adapters are components manufactured to join two or more thread forms or sizes to one another. In some cases, adaptors may also be fittings. For example, if the ORB female cylinder port I spoke of earlier needed to attach to a female JIC hose end, the adapter fitting would be ORB male by JIC male. I should note, ORB adapters are almost always fittings, since their very nature defines a “boss” as a female port in a component.
SA Belt is your local Hydraulic Hose repair specialist… If you find yourself looking for Hydraulic Hose Repair Near Me, give us a call. We are local, family-owned, and operated, and been in business since 1928.

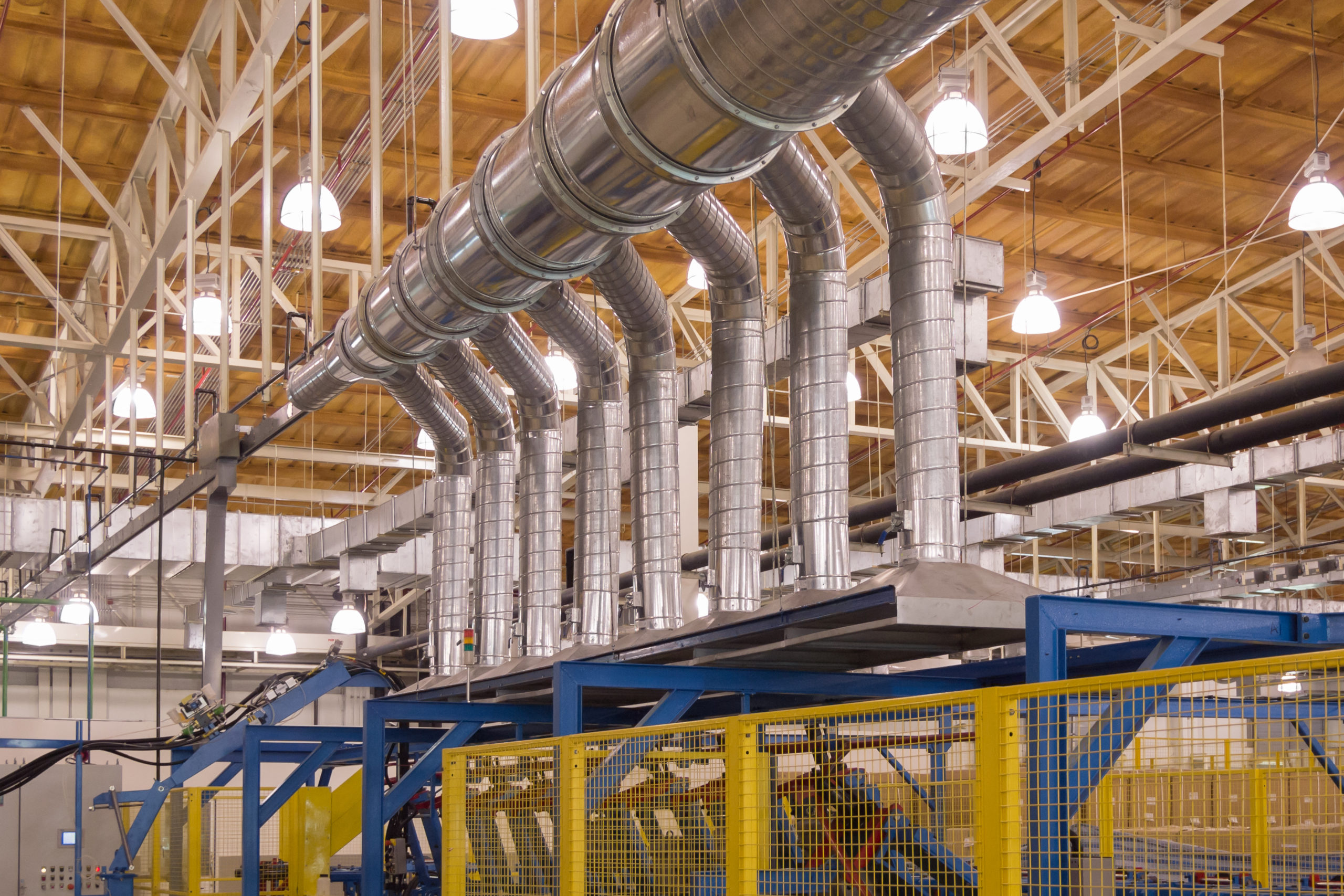

Ducting
Ducting typically implies larger diameter, low-pressure applications usually involving air. Flexible hose suggests small to large diameter hose that can handle vacuum, as well as, slightly higher pressures than standard ducting. The flexible hose is ideal for handling air, fume, dust, and lightweight material handling applications. We distribute a variety of flexible hose & ducting with a wide range of vacuum, pressure, and temperature ratings.
Conveyor Belting
A conveyor belt is the carrying medium of a belt conveyor system (often shortened to belt conveyor). A belt conveyor system is one of many types of conveyor systems. A belt conveyor system consists of two or more pulleys (sometimes referred to as drums), with an endless loop of carrying medium—the conveyor belt—that rotates about them. One or both of the pulleys are powered, moving the belt and the material on the belt forward. The powered pulley is called the drive pulley while the unpowered pulley is called the idler pulley. There are two main industrial classes of belt conveyors; Those in general material handling such as those moving boxes inside a factory, lightweight conveyor belting, and bulk material handling, heavyweight conveyor belting, such as those used to transport large volumes of resources and agricultural materials, such as grain, salt, coal, sand and more.
Heavy conveyor belts refer to US-style conveyor belts that are interwoven or nonwoven in construction, as opposed to other style belts. Heavy conveyor belts are generally more durable (with better puncture and tear resistance) and have higher lateral rigidity lightweight belts.
Light conveyor belts feature European-style construction, based on plied belts. Thanks to their wide construction modules, they can be made highly flexible to cope with small pulley diameters. Light belts can be installed for almost all materials handling and processing industry applications. High-tech automation usually uses light conveyor belts.

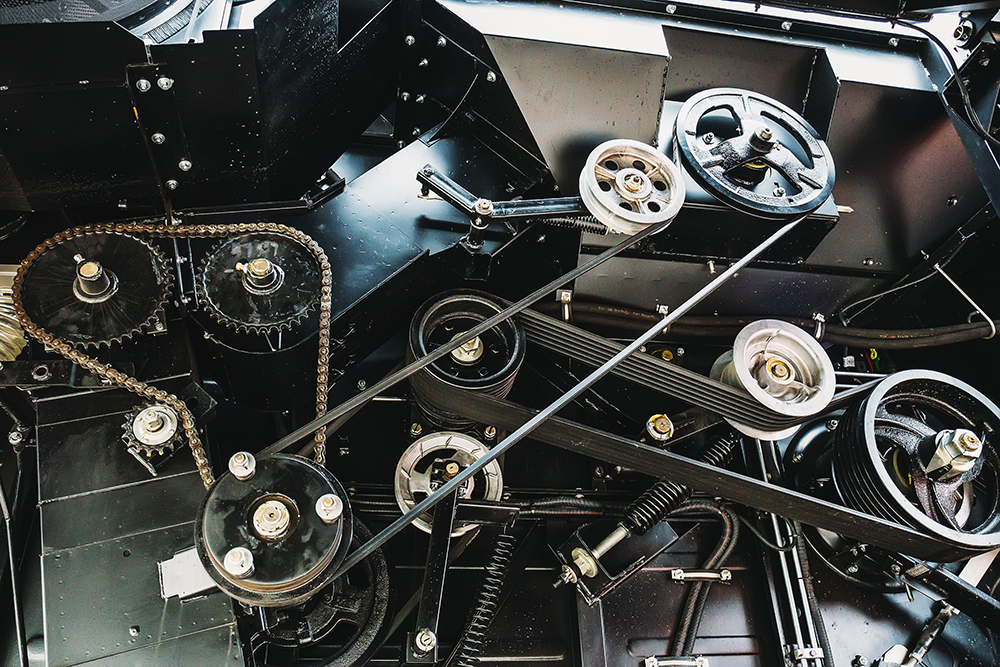

V-Belts, Pulleys, Sheaves
V belts are the basic belt for power transmission. They provide the best combination of traction, speed of movement, the load of the bearings, and long service life. They are generally endless, and their general cross-section shape is roughly trapezoidal (hence the name “V”). The “V” shape of the belt tracks in a mating groove in the pulley (or sheave), with the result that the belt cannot slip off. The belt also tends to wedge into the groove as the load increases—the greater the load, the greater the wedging action—improving torque transmission and making the V-belt an effective solution, needing less width and tension than flat belts.
There are 3 types of pulleys – drive pulleys, idler pulleys, and driven pulleys, usually referred to as sheaves. The difference between drive pulleys and driven pulleys is that drive pulleys are always secured to a driving shaft through their center hole driving them, (typically by key ways and set screws). Driven pulleys (normally called sheave)s, are driven by ropes, chains, or belts running in depressions around the outer circumference of the pulley. With the depression matching the shape and size of the rope, chain, or belt used to drive it. Depending on its function, driven pulleys (or sheaves) may or may not be attached to shafts through their center holes. Idler pulleys are simply non-working pulleys revolving around a fixed shaft (usually on sealed ball bearings) used to alter or re-direct the direction of drive belts, ropes, or chains.
Roller chain & Sprockets
Sprockets are designed for use with a specific chain. All chains are made to a given standard—with ANSI being the most common in the U.S. Each chain is identified by “pitch,” which refers to the measurement from one roller-pin center to the next roller-pin center of a given chain. ANSI chain pitch is always measured in 1/8” increments. The second most popular is British Standard Chain, in which chain pitch is measured in 1/16” roller-pin-center to roller-pin-center spacing increments and we carry this type of chain as well.
The term “plain bore” is associated with A-, B- and C-style sprockets, where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter. Plain bore sprockets typically require additional machining before installation.
The term “finished bore” is associated with B- and C-style sprockets, where the inside diameter of the hub is machined to accommodate a specific shaft diameter: This configuration includes a standard keyway and set screws. Finished bore hubs can also be machined to non-standard yet specific requirements depending on the needs of the application.

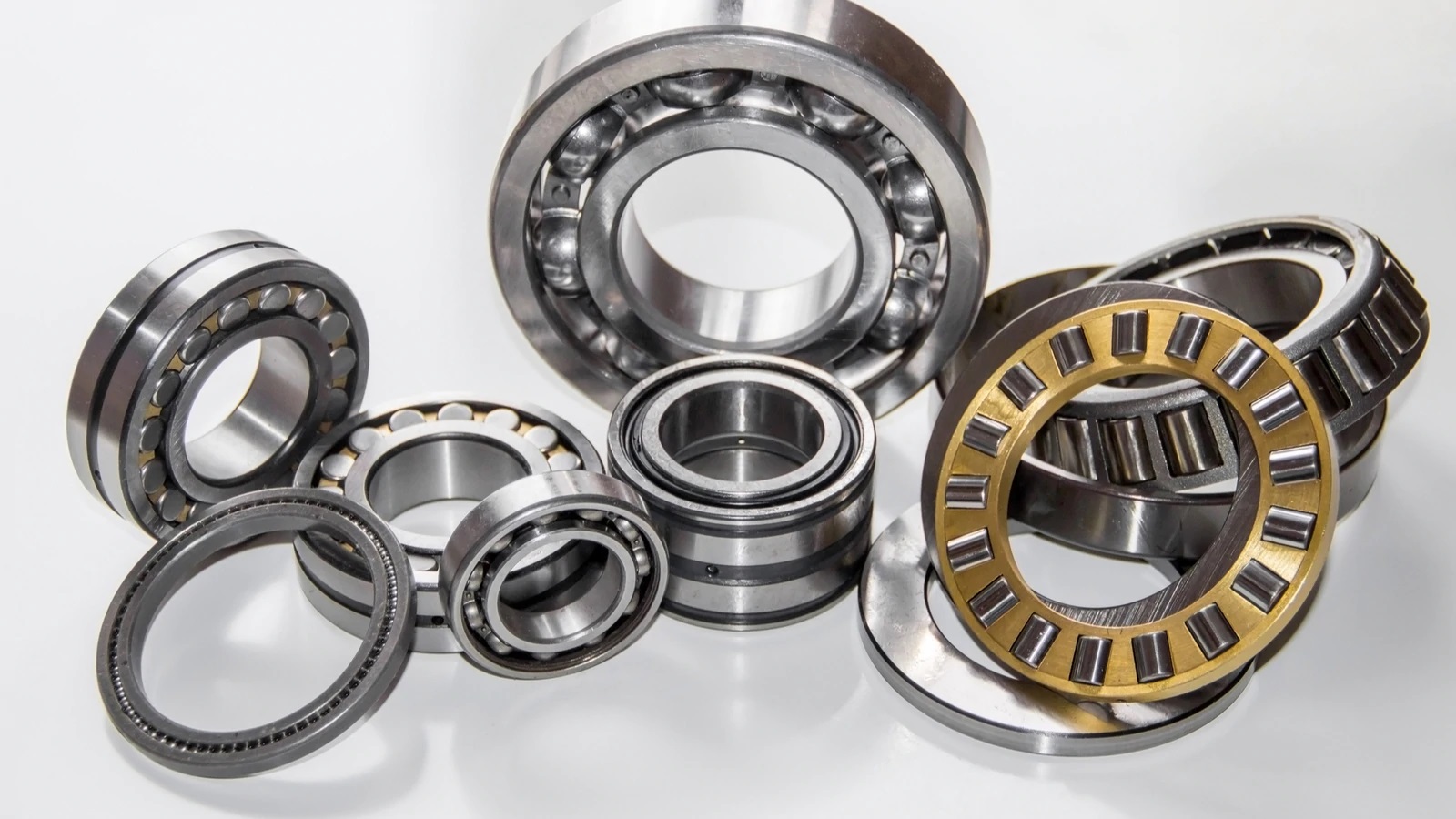

Bearings
There are many types of bearings, each used for different purposes. These include ball bearings, roller bearings, ball thrust bearings, roller thrust bearings, and tapered roller thrust bearings. SA Belt carries a variety of different types of bearings which include, 2 bolt flange, 4 bolt flange, mounted ball bearings, and loose ball bearings.
The purpose of a ball bearing is to reduce rotational friction and support radial and axial loads. It achieves this by using at least two races to contain the balls and transmit the loads through the balls. In most applications, one race is stationary and the other is attached to the rotating assembly. Ball bearings tend to have lower load capacity for their size than other kinds of rolling-element bearings due to the smaller contact area between the balls and races. However, they can tolerate some misalignment of the inner and outer races.
Bearings that are mounted within a flanged housing are used when the bearing mounting surface is perpendicular to a shaft axis. They are commonly available in two, three, or four-hole configurations. Two-bolt flanged ball bearing units have a diamond or winged-shape with 2 holes for mounting. 4-Bolt Flanged Bearing Units and the 2-bolt flanged bearing units have bearings that can be moved and aligned to better accommodate long shafts.
A pillow block usually refers to housing with an included anti-friction bearing. A pillow block refers to any mounted bearing where the mounted shaft is in a parallel plane to the mounting surface, and perpendicular to the centerline of the mounting holes, as contrasted with various types of flange blocks or flange units.
Motor controls are also known as motor controllers. They have several essential functions which include: automatically or manually starting as well as stopping the operation of an electric motor, setting forward or reversing the course of rotation, selecting and regulating the speed of rotation, controlling or regulating the torque, as well as protecting the motor against several degrees of electrical overloads and faults. Couplings and Clutches are power and motion transmission elements. They are used to transmit power from one shaft to another shaft. All of these Electric motor parts can be found at SABELT.
Gaskets allow for “less-than-perfect” mating surfaces on machine parts where they can fill irregularities. Gaskets are commonly produced by cutting from sheet materials. Gaskets are normally made from flat material, a sheet such as paper, rubber, silicone, metal, cork, felt, neoprene, nitrile rubber, fiberglass, Teflon, or a plastic polymer. Gaskets come in many different designs based on industrial usage, budget, chemical contact, and physical parameters. We have the ability at SABELT to custom cut any gasket needed. We also stock a large assortment of o rings in various sizes and materials. It’s a doughnut-shaped loop designed to prevent the passage of liquids or gases. It’s one of the simplest precision mechanical pieces ever produced and continues to be one of the most widely-utilized sealing products. Seals prevent fluids from escaping through the gaps in mating pieces of hardware. The O-Ring sits in the middle of a gland when it’s at rest, but as pressure begins to rise in the sealing system, the O-Ring shifts to the opposite side of the pressure. Because the material is soft, the O-Ring is mechanically squeezed to plug the hole between the two mating hardware pieces.
A transmission is a machine in a power transmission system, which provides controlled application of the power. Often the term transmission refers simply to the gearbox that uses gears and gear trains to provide speed and torque conversions from a rotating power source to another device. Multiple horsepowers are available to order.

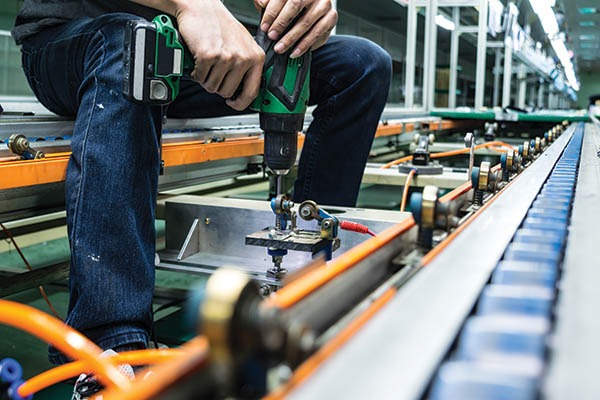

Service & Assembly
SABELT is more than a distributor of industrial products. Service & Assembly is in our wheelhouse as well. Our warehouse is trained to cut custom gaskets, create custom hose assembly (industrial or hydraulic), to do in house belt splicing/vulcanizing and able to complete any hose assembly that may be needed that walks in our front door.
We also have trained professionals that can come to your location for conveyor belt installation and maintenance, hose testing, onsite inventory management, belt splicing and vulcanizing and not to mention our 24/7 on call service that is here 365 days a year.
Outdoor
Our showrooms are also filled with all the outdoorsman’s needs as well. We proudly distribute All Season Feeders, NEBO, and WR CASE brands.
Deer blinds, corn/protein feeders, road feeder, and BBQ pits fill our showroom floor for purchase today. These products being able to test the seasons is what make them a brand for SABELT. Our customers expect the best from us so we only stock the best for them.
Illuminate your world with NEBO. For over 125 years, Case has carefully crafted every detail of their knives. Explore the materials, stamping system, patterns, and more that have established Case as the standard for exceptional cutlery. From their roots selling handcrafted knives from the back of a wagon to designs that landed on the moon, explore the story of Case knives, an icon of American craftsmanship.
Our Products
Industrial Fittings
Dixon Campbell Kuriyama
Aeroquip Camozzi Synflex
Ducting Hose
Dura-Vent Flexaust Federal
Industrial Hose & Fittings
Eaton Gates Thermoid Kuriyama
Oil Field Supply
Hose Assemblies Hammer Unions Valves Hose Loops
Gasket Material
Garlock Kuriyama Flexitallic Topog-E
Domestic Import Garlock Legg
Conveyor Belt - Light Weight
UBR Ammeraal Habasit Forbo Chemprene
Conveyor Components
Precision Pulley Flexco MaxiLift Superior
Screw Conveyor
Thomas KWS
Conveyor Belt Fasteners
Flexco Minet-Super Screw Clipper
Leeson Worldwide US Motors
Couplings
Love Joy Browning Kop-Flex
Sheaves
Browning Master Drive
V-Belts
Gates Browning Carlisle Optibelt
Mounted Bearings
Seal Master Browning AMI Moline
Browning Hub City
Roller Chain
US Tsubaki Renold Jeffrey Import Chain
Sprockets
Browning US Tsubaki
Industrial Lubricants
WD40 Keystone Mystik Super Lube
Visit one of our Two Locations
San Antonio Belting & Pulley
211 W Cevallos, San Antonio, TX 78204
(210) 225-2671
San Antonio Belting & Pulley
1620 N Hwy 123 Bypass, Seguin, TX 78155
(830) 549-5063
